NORDIFLOW HT

Application area:
District heating, Industry
Diameter:
150 - 1200mm / 6" - 48"
Material:
Glass fibre reinforced felt with high performance coating
Installation:
Inversion or Pull-In
Home > Applications

The Advantages at a Glance

  • Based on the successful Nordiflow W design

  • Pressure lining material for district heating and industry application

  • For fluids up to 120°C / 248°F in pressurized pipes

  • Class B: semi structural lining material according to ISO 11295 (class A version also possible)

  • Inversion and Pull-in version possible

  • Bends are possible

  • Highly adaptable design to meet project requirements

  • Longterm operating pressure PFA up to 16bar possible

  • Wide diameter range from 150 - 1200mm / 6" - 48"

  • Sealing properties by gluing to the surface

Product Characteristics

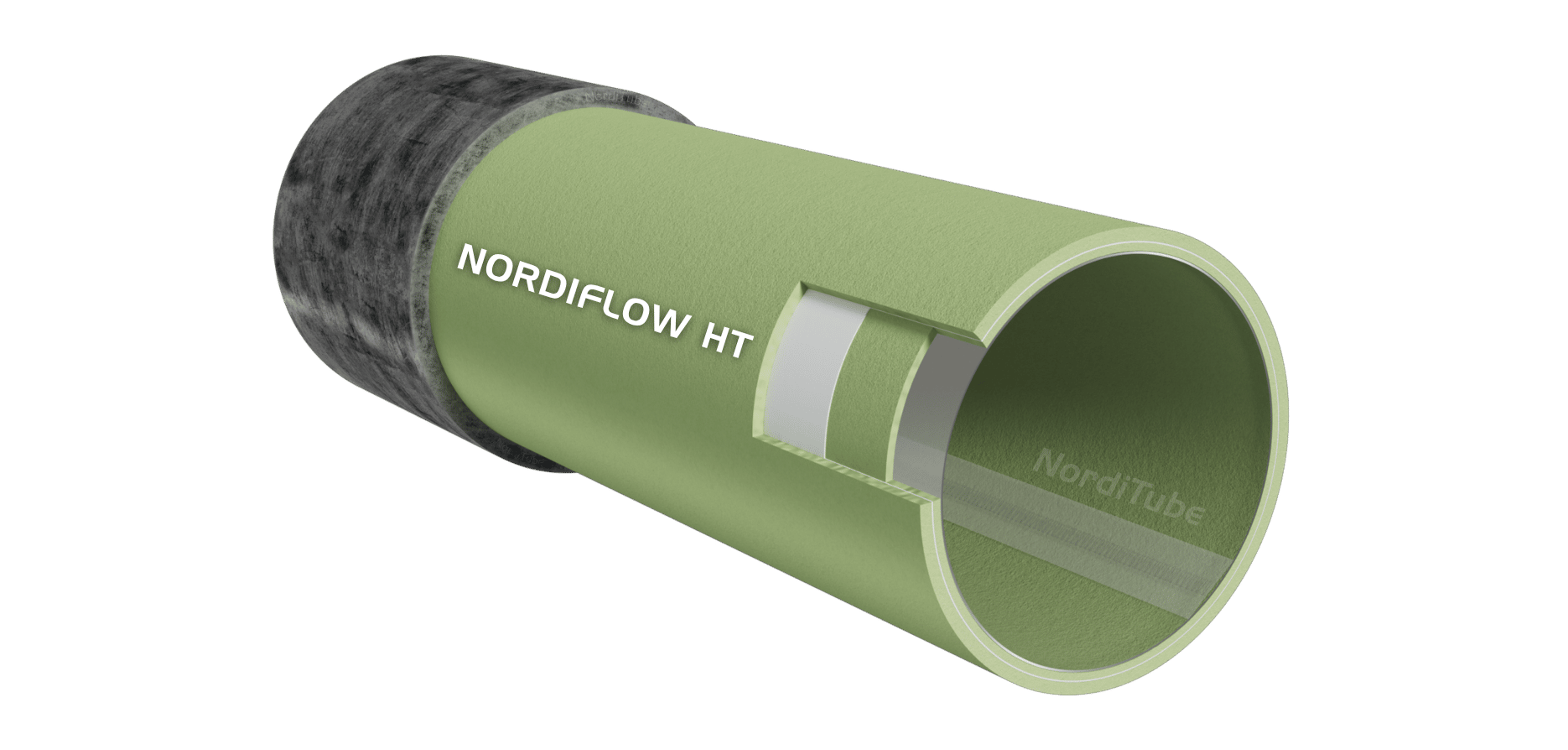

Glass fibre reinforced felt with high performance coating

Liner maintains flexibility to negotiate bends and still achieves the necessary pressure resistance.

Class B according to ISO11295

Due to modular production, the liner can be customized to specific requirements of the project. The liner can be designed to meet Class B or Class A standards.

CIPP (Inversion or Pull-In)

Inversion liner to be used with a special developed Epoxy-resin. Liner can also be designed to be installed as pull-in version.

Special coating and resin to meet temperature requirements

A special coating and adapted resin, makes out of the successfull Nordiflow HT liner a high-performance liner for heat applications.

Technical Specifications

  • Up to 16bar operating pressure (depending on diameter and temperature)

  • Class B according to ISO11295

  • Glass fibre reinforced felt liner with a special HT coating

  • Temperatures up to 120°C / 248°F
