TUBETEX W

Application area:
Water
Diameter:
PE: DN 200 - 1000 mm /
TPU: DN 80 - 1200 mm
Material:
Woven fabric out of Polyester yarn with high performance coating

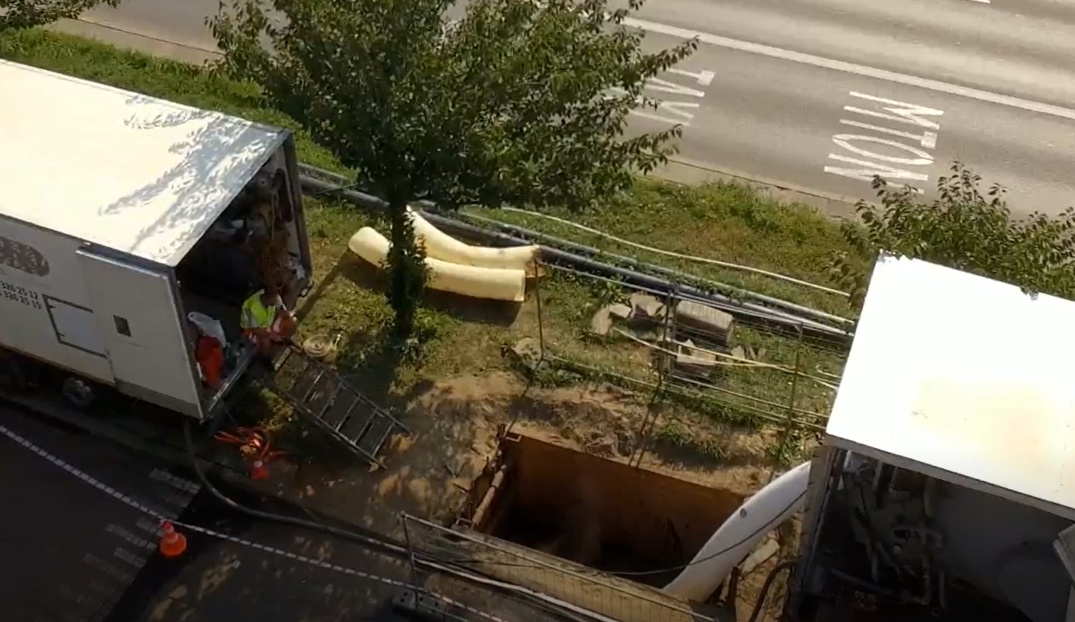

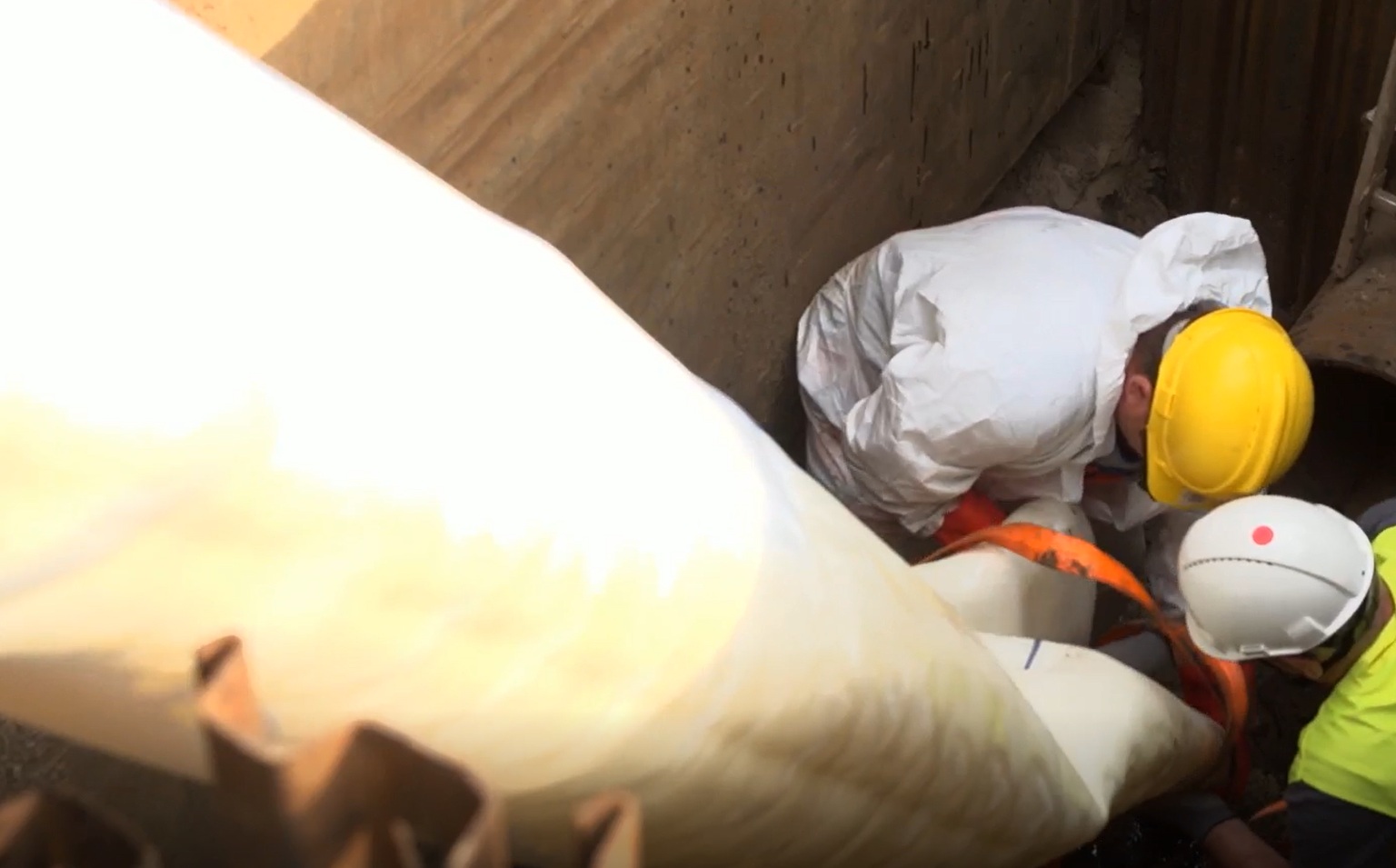

Installation:
Inversion
Home > Applications

The Advantages at a Glance

  • Proven quality and technology since 1987

  • Excellent flexibility

  • Corrosion and leakage protection

  • Thin and seamless product

  • For water and industry application

  • Wide diameter range. PE: DN 200 - 1000 mm  /  TPU: DN 80 - 1200 mm

  • Trenchless reopening of connections and laterals

  • Great performance in seismic areas

Product Characteristics

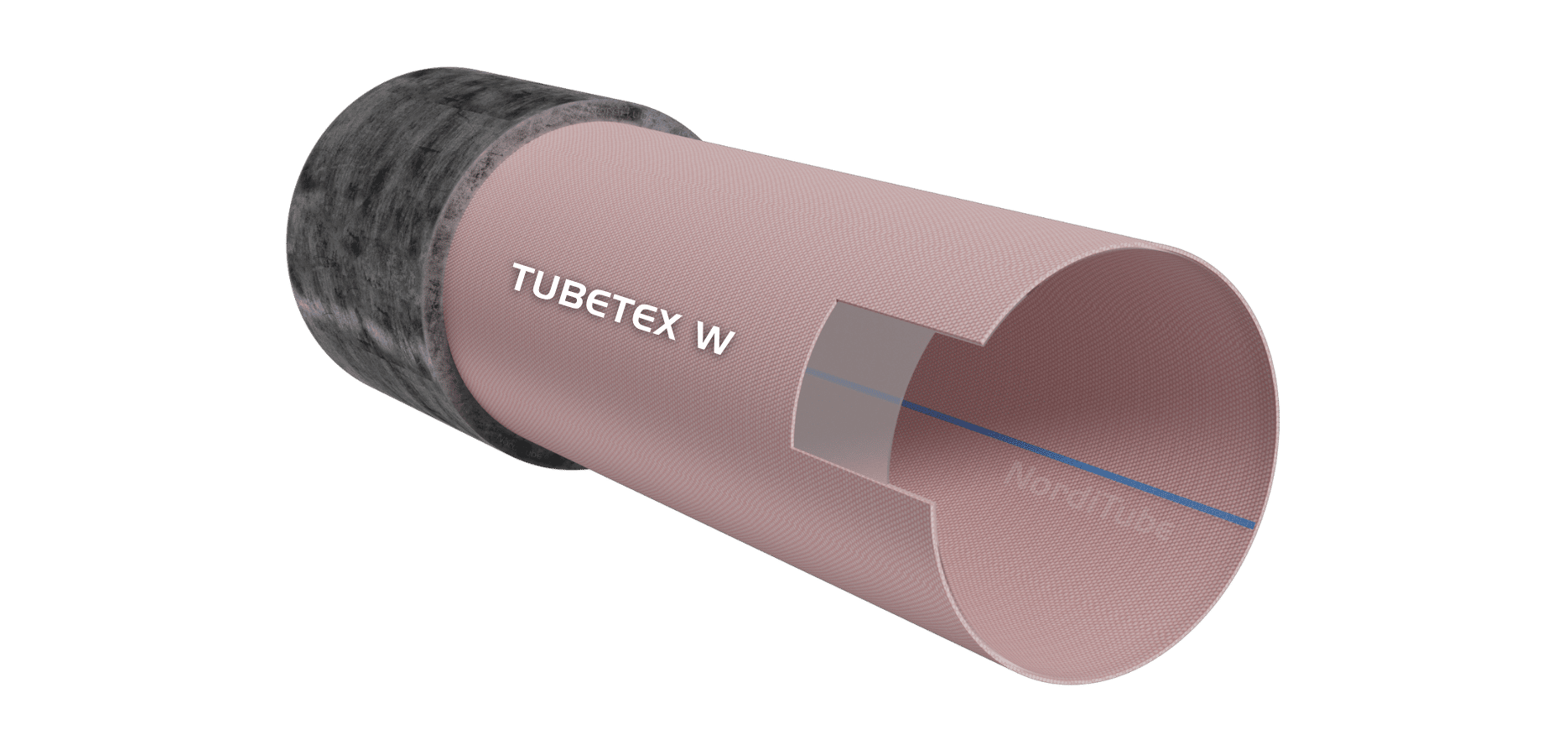

Woven fabric out of Polyester yarn with high performance coating

Thin liner (3mm) without seam. Nearly no loss of diameter and easy application of sealings.

Class C system according to ISO11295

The TUBETEX W is an interactive system and entirely bonded to the host pipe. Mechanical properties are given by the host pipe and the liner will provide corrosion and leakage protection.

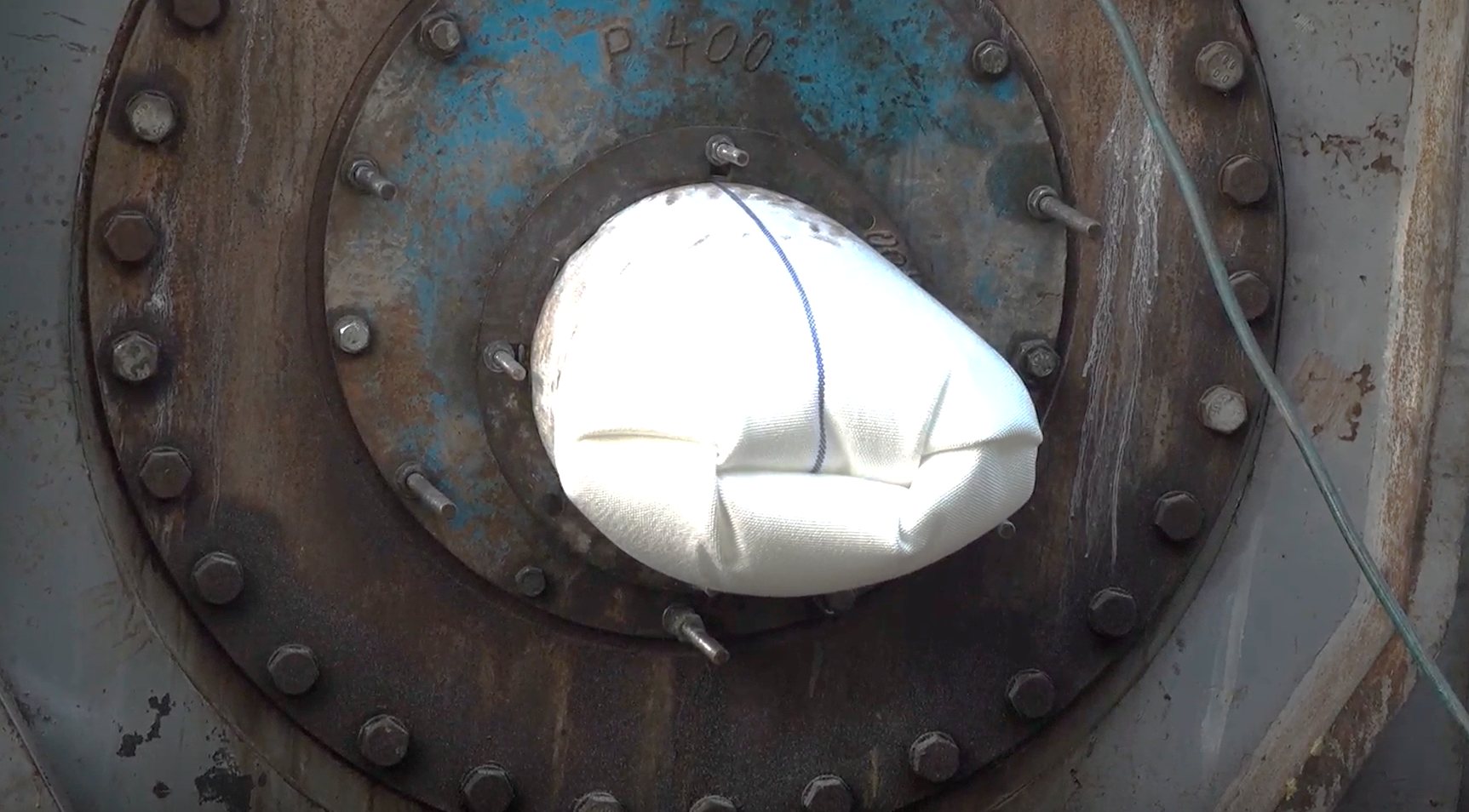

CIPP (Inversion)

Inversion liner to be used with a special developed Epoxy-resin.

Tested according DVGW GW327

Tests include reconnecting and new connections of laterals after installation of the liner.

Technical Specifications

  • Operating pressure up to 16bar

  • Class C: interactive system according ISO11295

  • Polyester yarn with PE / TPU coating

  • ACS, Poland, Croatia, AS/NZS 4020, SS375, other national drinking water approvals

  • DVGW GW 327
