NORDIWALL HT

Application area:
Industry
Diameter:
50 - 1200 mm / 2" - 48"
Material:
Polyester needle felt lining material with high performance coating
Installation:
Inversion and Pull-In
Home > Applications

The Advantages at a Glance

  • For gravity applications with heat (sewer, industry e.g. oil rigs)

  • Special HT-coating to withstand temperatures up to 120°C / 248°F

  • Good impregnation behaviour

  • Diameter range 50 - 1400 mm / 2" - 56"

  • Bends possible

  • Special adapted high performance resin

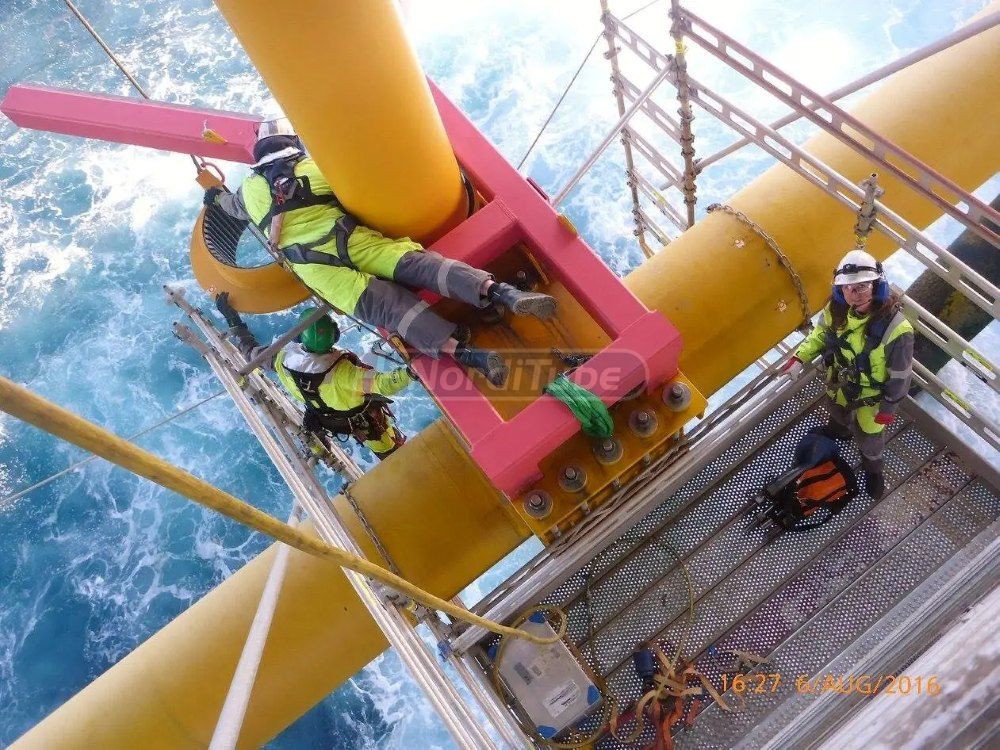

  • Developed on behalf of demand coming from oil rigs

Product Characteristics

Polyester needle felt lining material with high performance coating

Flexible felt liner, which can easily be impregnated and negotiate bends during installation.

Modular design

Lining materials are highly customizable to meet project specification.

CIPP (Inversion and Pull-In)

Inversion lining material to be used with a special developed Epoxy-resin. Can also be designed as installed as pull-in version.

Special coating and resin to meet temperature requirements

A special coating and adapted resin, makes out of the successfull Nordiwall liner a high-performance liner for heat applications.

Technical Specifications

  • Gravity liner

  • Polyester needled felt with a special HT coating

  • Temperatures up to 120°C / 248°F

  • Excellent chemical resistance
